Maattabel
Afmetingen voor Imperial PEEK Slotted Pan Screw in alle beschikbare maten worden getoond volgens de bovenstaande producttekening.
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Materiaal: PEEK
Measurement System: Imperial
Natural
Maximum Temperature: 260°C/500°F
Flammability: UL94 V-0
Imperial PEEK Slotted Pan Screw voldoen aan de volgende normen/normen:
PEEK Imperial Slotted Pan Head Screws offer a robust and versatile fastening solution suitable for a wide array of applications. Crafted from Victrex 450G PEEK, these screws are engineered to deliver exceptional performance in demanding environments.
Victrex 450G PEEK is renowned for its outstanding mechanical properties, including high strength, stiffness, and excellent chemical resistance. These qualities make it an ideal material for fasteners intended for applications where reliability and durability are paramount.

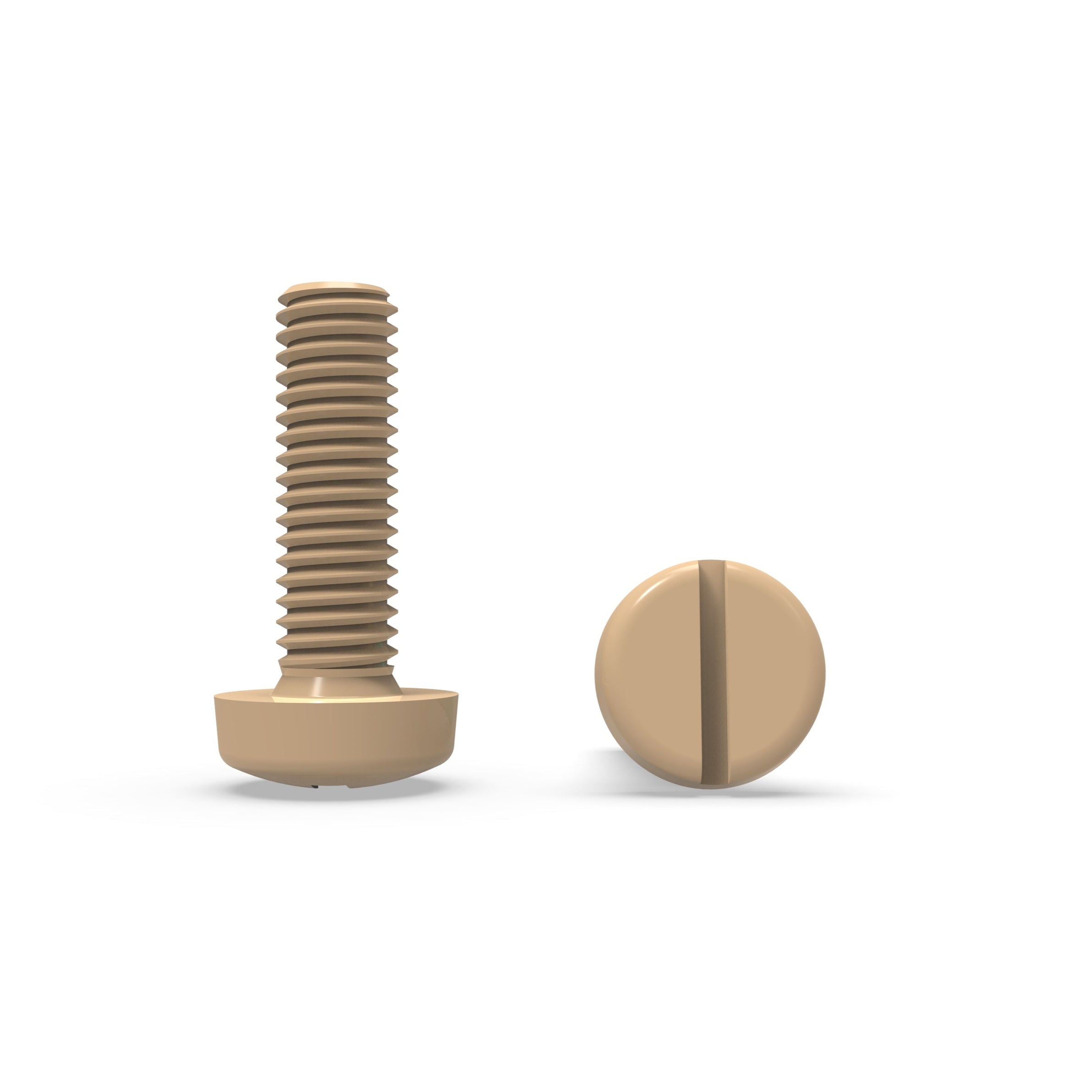

The slotted pan head design of these screws features a flat, slightly rounded head with a single straight slot across the top, allowing for easy installation and removal using a standard slotted screwdriver. This design offers a classic yet effective method of fastening, providing excellent clamping force and distributing load evenly over the surface area. Additionally, the pan head design reduces the risk of material damage, particularly in softer materials or thin-walled components.
One of the key benefits of using Victrex 450G PEEK for these screws is its lightweight nature compared to metal counterparts. This makes them suitable for applications where weight reduction is critical without compromising strength or durability.
PEEK Imperial Slotted Pan Head Screws find applications across various industries, including aerospace, automotive, electronics, medical devices, and chemical processing. In aerospace and automotive industries, they are used in structural assemblies, interior components, and engine systems due to their high strength-to-weight ratio and resistance to fuel, oil, and hydraulic fluids. In electronics, they are utilized for securing components in devices subjected to high temperatures or corrosive environments. Similarly, in medical devices, PEEK Imperial Slotted Pan Head Screws are favored for their biocompatibility, sterilization resistance, and ability to withstand repeated autoclaving cycles.
Het gegevensblad PEEK kan hieronder als PDF worden gedownload.
Retourneer onderdelen binnen 90 dagen voor een volledige terugbetaling. Zie de retourvoorwaarden voor meer informatie.
Thread Size | Thread Series | Head Diameter | Head Height | Slot Depth | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4-40 | UNC | 0.219 | 0.068 | 0.040 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6-32 | UNC | 0.270 | 0.082 | 0.050 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
8-32 | UNC | 0.322 | 0.096 | 0.058 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10-32 | UNF | 0.373 | 0.110 | 0.068 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Afmetingen voor Imperial PEEK Slotted Pan Screw in alle beschikbare maten worden getoond volgens de bovenstaande producttekening.
Volg de onderstaande link om onze PEEK datasheet te bekijken. Dit omvat eigenschappen zoals mechanische, elektrische, thermische en chemische weerstand.
50.000+ bevestigingsartikelen op voorraad
Geen lange levertijden. We hebben een groot assortiment PEEK-bevestigingsartikelen beschikbaar voor expreslevering (dezelfde dag verzonden indien besteld voor 15.00 uur van maandag t/m donderdag).
Bevestigingsartikelen die niet beschikbaar zijn voor expreslevering, tonen de verwachte leverdatum boven de knop 'Toevoegen aan winkelwagentje'.
Fabrikant Directe Distributeur
We zijn een directe distributeur van de fabrikant, waardoor we zeer concurrerende prijzen kunnen garanderen en onze schappen gevuld kunnen houden. Al onze producten zijn vervaardigd volgens de hoogste normen en vertonen uitzonderlijke eigenschappen.
ISO9001 Gecertificeerd
Gecertificeerd door Quality Veritas. High Performance Polymer voldoet aan het ISO9001 kwaliteitsmanagementsysteem. Certificaten beschikbaar op aanvraag.
Materiaalcertificaten
We bieden volledige traceerbaarheid van materialen en kunnen certificeringen leveren die de materiaalgegevens en het batchnummer bevestigen, die kunnen worden getraceerd naar de fabrikant.
Conformiteitscertificaat
Op verzoek leveren we ook een conformiteitscertificaat dat de productienorm en het materiaal bevestigt.
